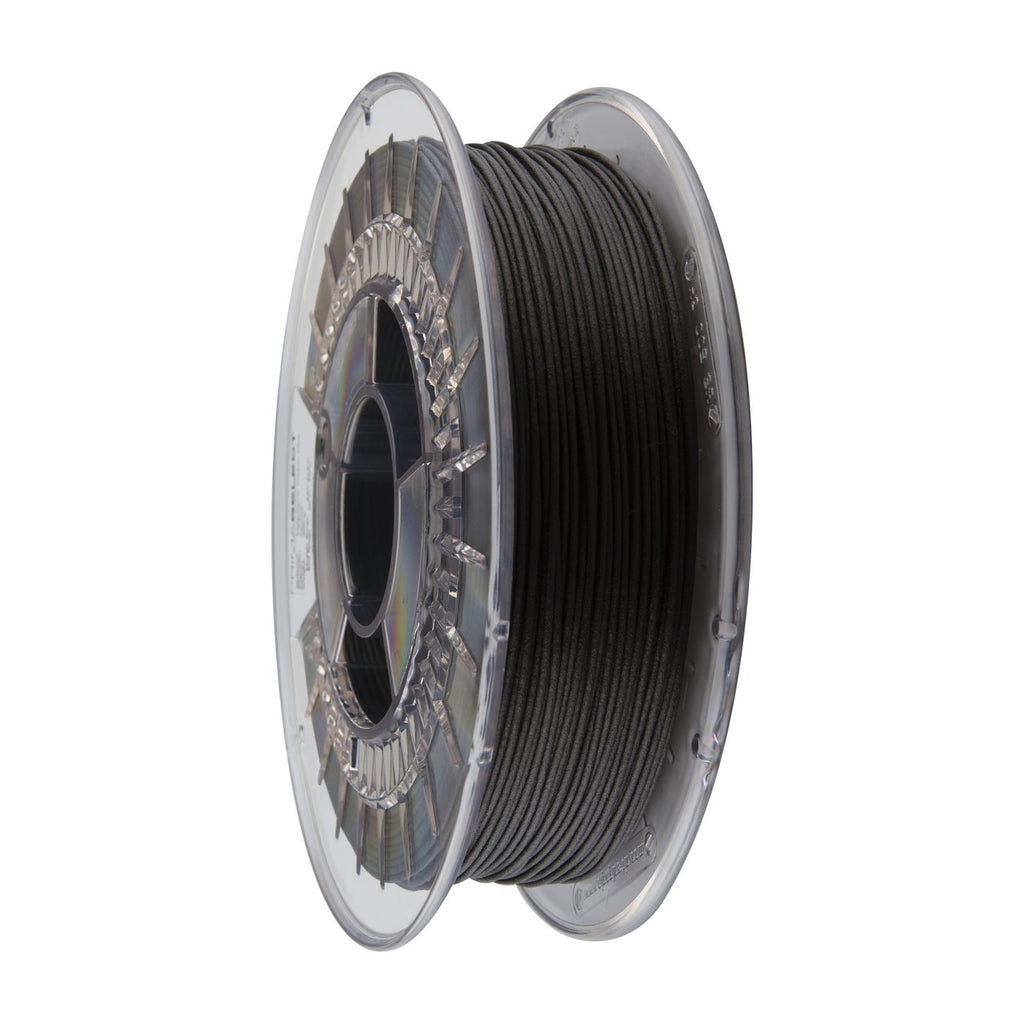

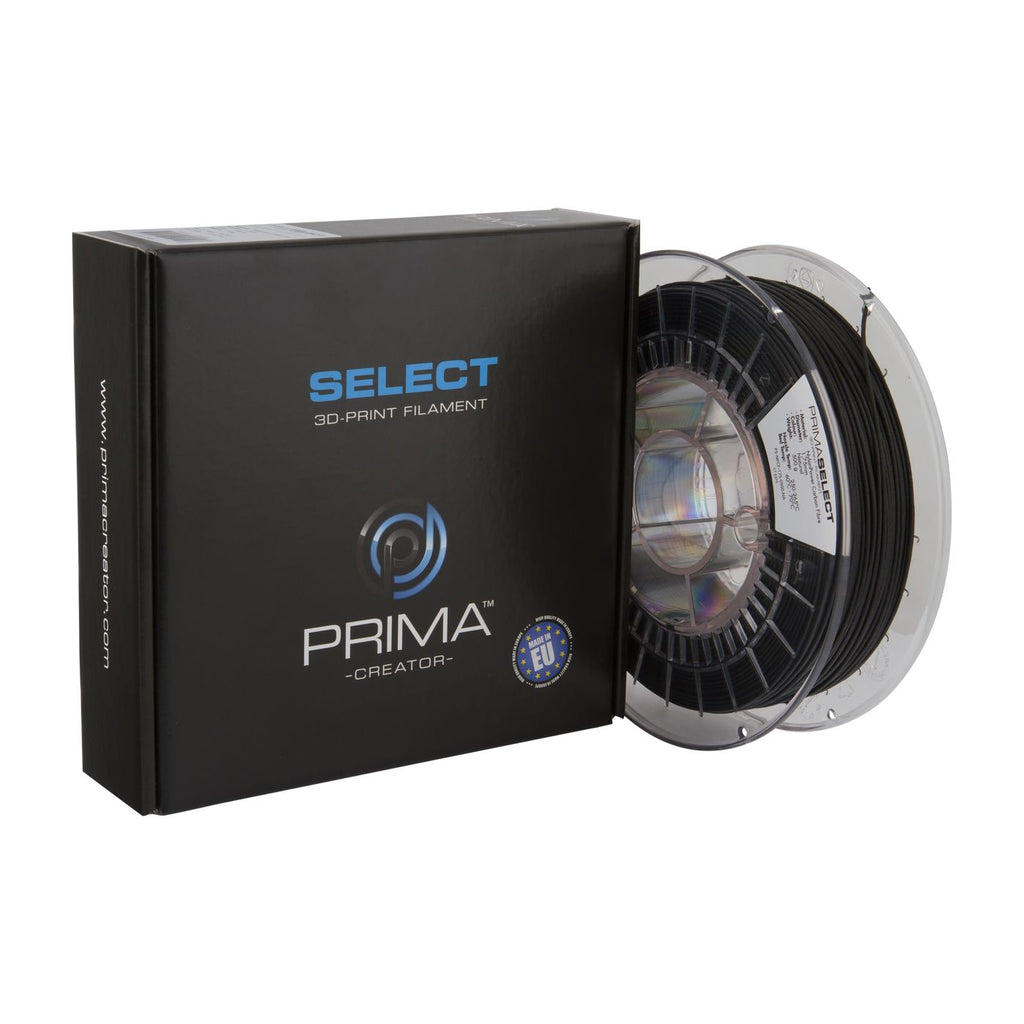

SELECT NylonPower Carbon Fiber is the latest generation of high performance material for your 3D Printer. Our SELECT NylonPower is based on Nylon 12 and is reinforced with 20 % carbon fibers. This makes for an extremely tough filament that is perfect for printed parts that can be used in the automotive industry, drones and RC parts
SELECT NylonPower Carbon Fiber is the latest generation of high performance material for your 3D Printer. Our SELECT NylonPoweris based on Nylon 12 and is reinforced with 20 % carbon fibers. This makes for an extremely tough filament that is perfect for printed parts that can be used in the automotive industry, drones and RC parts.
SELECT NylonPower Carbon Fiber is a very useful material that has very unique properties. Mixed with small, chopped carbon fiber strands, SELECT NylonPower filament offers incredible rigidity, structure, and great interlayer adhesion. NylonPower is very easy to print with and has a matt surface when done. The finished prints are very stiff and rigid and are very useful if you need an object with high stiffness to weight ratio. SELECT NylonPower requires a heated bed, set to 60-70˚C to get a good first layer adhesion.
Due to the abrasive nature of SELECT NylonPower we recommend that you use a hardened steel nozzle for this filament. Using a regular brass nozzle isn´t a problem but it will wear out the nozzle in a short time.
SELECT NylonPower sticks on glass coated with adhesive spray or glue stick.
|Carbon fiber reinforced Nylon
|1.75mm or 2.85mm
|± 0.05 mm
|Heated build platform required
|Yes, 60 - 70° C
|250 - 265° C
|Recommended Print Speed
|Total lenght on spool
|200 x 55 mm
|Spool Hub Diameter
|Empty spool weight
|Ball indentation hardness
|Heat deflection temp. HDT/A
|Thermal expansion coefficient
|Max usage Temp. long term
|Max usage Temp. short term
|Specific volume resistivity
|Linear mould shrinkage
Tips and trick:
Take care of your filament:
Thanks to the Carbon fibers in NylonPower it reduces the amount of water that can be absorbed.
What you need to keep in mind is that NylonPower is a Nylon filament from the beginning, so you need to make sure that the filament is completely dry before using it. NylonPower is shipped in a vacuum sealed bag with desiccant so the first print shouldn´t post any problem.
In case of exposure for humidity we strongly recommend that you dry your spool of NylonPower before you begin to print. To do this, just place the whole spool in the oven at 80°C for 5 to 7 hours. Then you have dried you spool and can start a new print again.
How to print:
NylonPower requires a temperature of 250°C - 265°C to extrude correctly. The filament can be printed on most printers, but we highly recommend that you use an all-metal setup for your extruder. NylonPower can be printed at lower temperatures but please keep in mind that you will not get the same strength in the finished parts.
This filament contains carbon fibers, so it is very abrasive for your nozzle. We HIGHLY recommend that you use a hardened steel nozzle for this filament as a regular brass nozzle will wear out in a very short time.
Larger nozzles of 0.6 or 0.8 creates very strong prints and lower the risks of clogging up the nozzle. But it ok to use with a 0.4 mm nozzle as well.
NylonPower does not stick well to PEI, BuildTak or similar surfaces. Glass is the best surface to use coated with MagiGoo, PrintaFix, PVA based glue stick or similar. When printing with NylonPower you should not use any cooling fans.
|SELECT™ NylonPower Carbon Fiber Data Sheet
